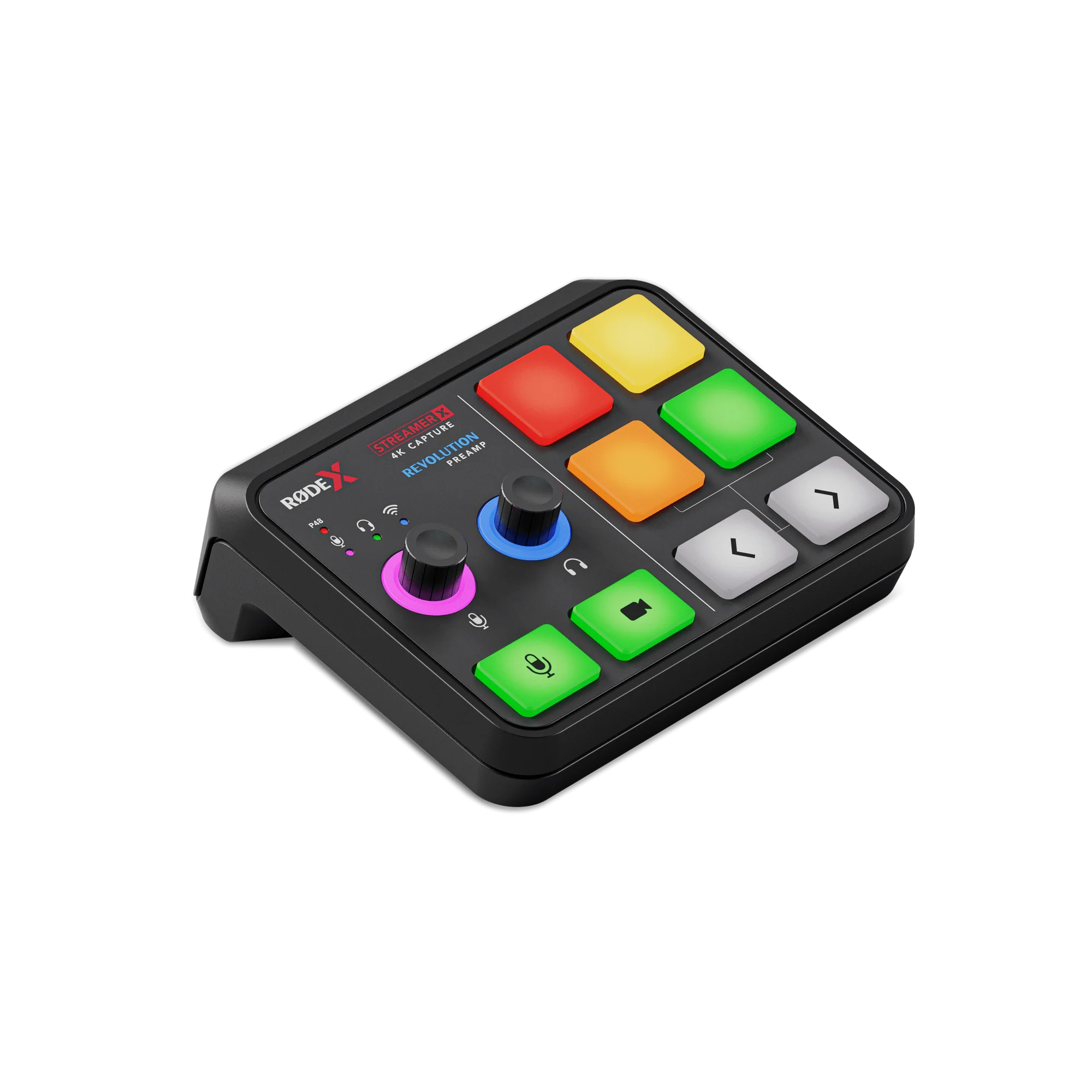

RODE Streamer X Audio Interface and Video Capture Card
RØDE Streamer X – Key Specifications

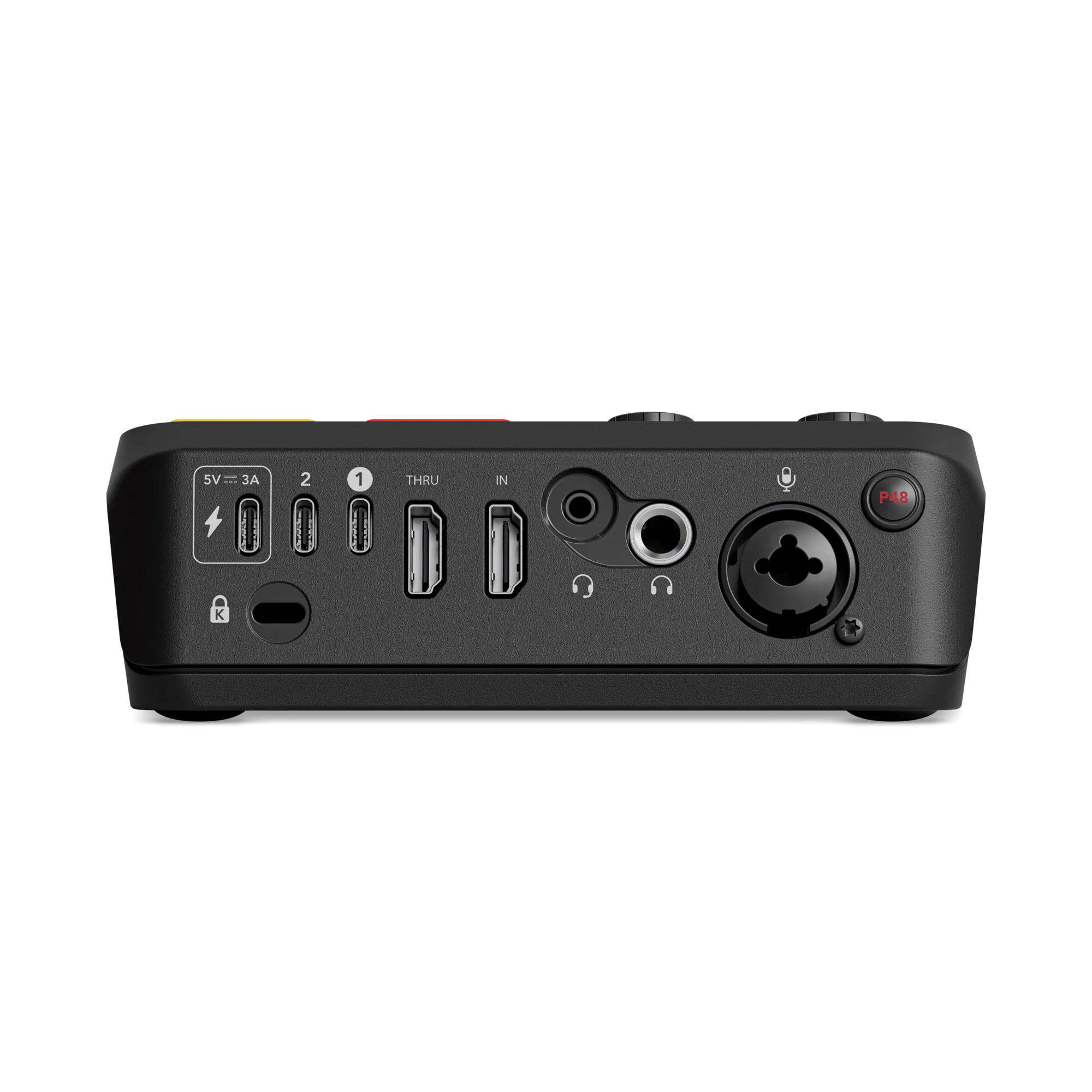

Video Inputs & Outputs
| Feature | Details |
|---|---|
| Video Input Connectors | 1x HDMI Type A 2.0 |
| Video Passthrough Output | 1x HDMI Type A 2.0 |
| Maximum Input Resolutions (HDMI In) | 4K60 HDR 1440p144 HDR 1080p240 HDR |
| Variable Refresh Rate Support (VRR) | Yes |
| Maximum Capture Resolutions | 4K30 1440p60 1080p120 1080p60 HDR |
Audio Inputs
| Feature | Details |
|---|---|
| Microphone / Instrument | 1x XLR Combo Jack |
| Wireless Receiver | 1x |
| HDMI Input | 1x |
| Input Dynamic Range | 113 dB |
| Preamp Noise | -131.5 dBV (A-weighted) |
| Frequency Range | Mic Inputs: 20Hz – 20kHz Headphone Output: 20Hz – 20kHz |
| Microphone Input Impedance | 4 kΩ |
| Instrument Input Impedance | 1 MΩ |
| Preamplifier Gain Range | 0 – 76 dB |
| Phantom Power | Yes |
| Direct Monitoring | Yes |
Audio Outputs
| Feature | Details |
|---|---|
| Headphone Outputs | 1x 3.5mm TRRS Headset Jack (I/O) 1x ¼" Headphone Jack |
| Headphone Output Power | 125 mW per channel |
Additional Features
| Feature | Details |
|---|---|
| Internal Storage | 2 GB (SMART Pads) |
| Power Requirements | USB-powered: 5V @ 3A |
$361.37
RODE Streamer X Audio Interface and Video Capture Card—
$361.37
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
RØDE Streamer X – Key Specifications
Video Inputs & Outputs
| Feature | Details |
|---|---|
| Video Input Connectors | 1x HDMI Type A 2.0 |
| Video Passthrough Output | 1x HDMI Type A 2.0 |
| Maximum Input Resolutions (HDMI In) | 4K60 HDR 1440p144 HDR 1080p240 HDR |
| Variable Refresh Rate Support (VRR) | Yes |
| Maximum Capture Resolutions | 4K30 1440p60 1080p120 1080p60 HDR |
Audio Inputs
| Feature | Details |
|---|---|
| Microphone / Instrument | 1x XLR Combo Jack |
| Wireless Receiver | 1x |
| HDMI Input | 1x |
| Input Dynamic Range | 113 dB |
| Preamp Noise | -131.5 dBV (A-weighted) |
| Frequency Range | Mic Inputs: 20Hz – 20kHz Headphone Output: 20Hz – 20kHz |
| Microphone Input Impedance | 4 kΩ |
| Instrument Input Impedance | 1 MΩ |
| Preamplifier Gain Range | 0 – 76 dB |
| Phantom Power | Yes |
| Direct Monitoring | Yes |
Audio Outputs
| Feature | Details |
|---|---|
| Headphone Outputs | 1x 3.5mm TRRS Headset Jack (I/O) 1x ¼" Headphone Jack |
| Headphone Output Power | 125 mW per channel |
Additional Features
| Feature | Details |
|---|---|
| Internal Storage | 2 GB (SMART Pads) |
| Power Requirements | USB-powered: 5V @ 3A |
